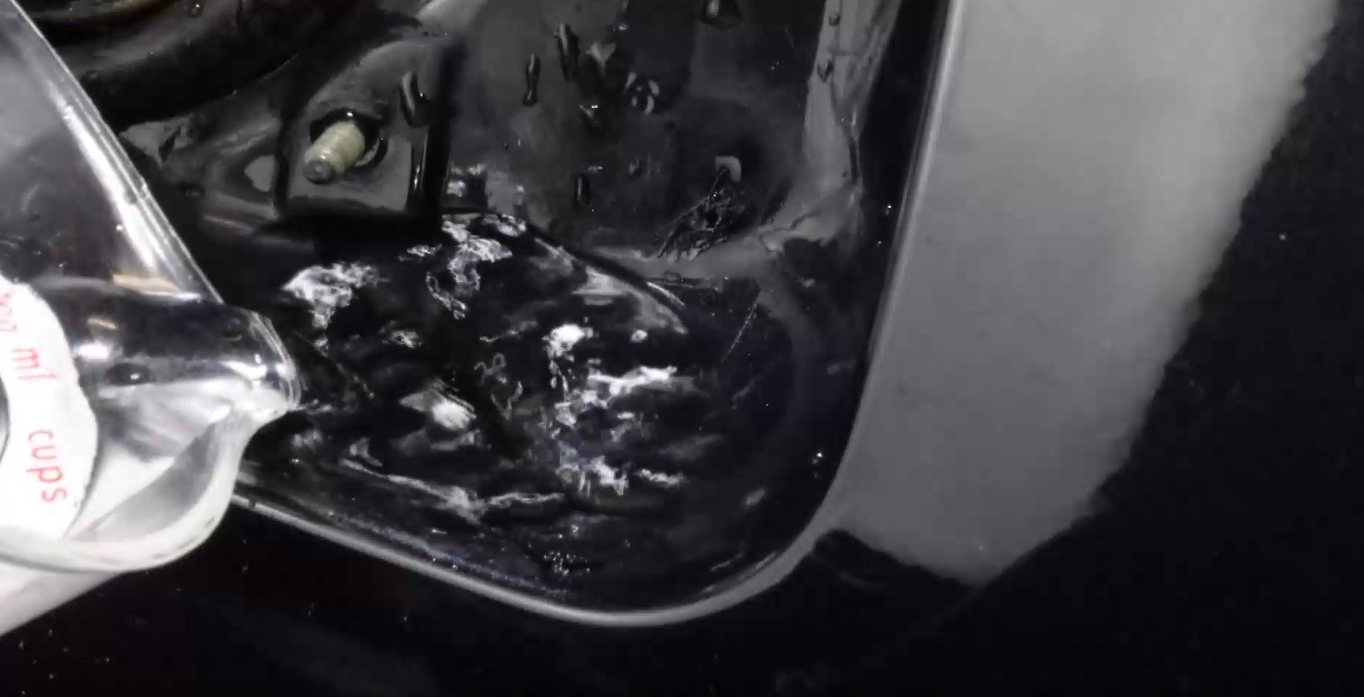

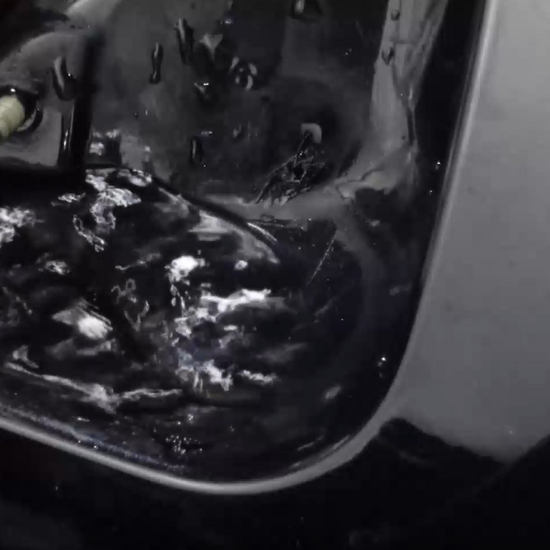

Fuel Cap Area Drain Kit for E39 BMW 5 Series (1996-2003) - 3D Printable Files

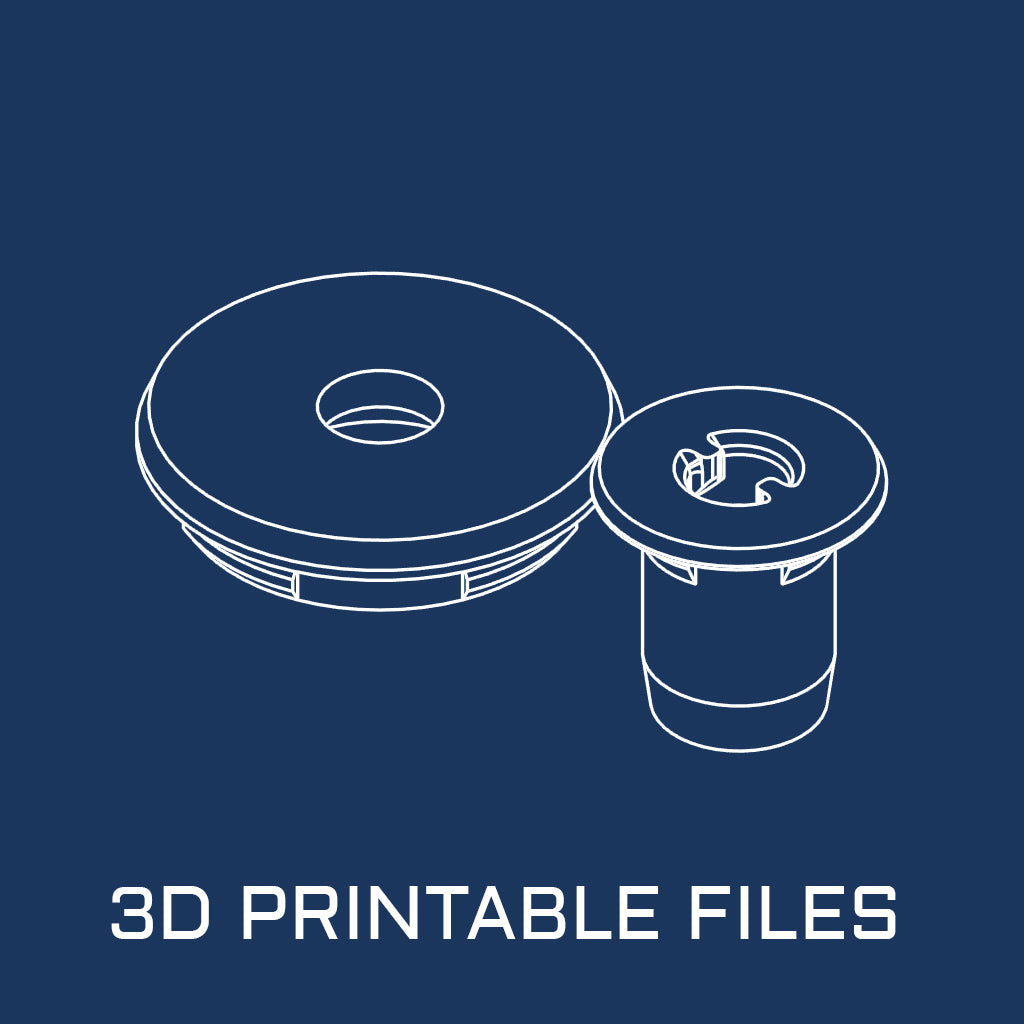

These are the 3D Printable Files for our Fuel Cap Area Drain Kit, allowing you to construct our kit yourself and avoid paying international shipping. There are only two 3D Printed components in this kit, both printed from Hard TPU (68D):

• 1x Inlet Fitting
• 1x Body Grommet

The other two components required can be bought online or at a hardware store:

• 50cm PVC tubing (7mm outer diameter)
• Rubber Grommet (6.3mm inner diameter, ~10mm panel hole diameter - this is a commonly available size)

We also include an alcohol wipe in our kit to prep the surface around the drilled hole for sealant application, but any rubbing alcohol / isopropyl alcohol will do the job. To complete the installation you'll also need the items below:

• 10mm and 11mm drill bit (we also recommend a smaller drill bit for a pilot hole)
• 8mm and 10mm sockets
• RTV / silicone sealant
• Small needlenose pliers
• Vehicle jack
• Trim Clip Removal Tool

Recommended additional items:

• Electrical tape (we tape the Drain Tubing to the Inlet Fitting for a little added security)
• Touch-up paint
• Scissors / flush cutters
• Small metal file
• Axle stand to support vehicle jack

This download is for personal, non-commercial use only. Distribution of the included file(s) or sale of 3D Printed items using the included file(s) is not permitted. 3D Printable File purchases are non-refundable.

Diverge 3D is committed to providing you with the best possible experience through our products and accompanying instruction guides. However, we cannot accept responsibility for any damage, injury, or other consequences that may occur during installation or use. Please ensure you are familiar with and comply with your local laws regarding vehicle modification. As this is an aftermarket product, it has not undergone crash testing and its performance in an accident is unknown. Do not allow the use of our products to distract you from your surroundings or affect your control of the vehicle. Any electrical work is undertaken at your own risk. If you are not confident in carrying out such work, we recommend seeking assistance from a qualified professional.
